Where is the RV AC Freeze Sensor Location? [Photos]

Check if the RV air conditioner freeze sensor is installed in the correct position, ensure the sensor is tightly wedged into the coil fins, and inspect the sensor’s appearance, wiring, and resistance value to locate the cause of the problem. Then, select the correct matching sensor for replacement.

Quick Summary

• What is it? A small temperature probe attached to the evaporator coil.
• Importance: It prevents ice from blocking airflow and damaging the compressor.
• Goal: Accurately identify the problem for a quick fix to cooling issues.

Imagine it’s mid-July. Your client’s RV park is full, or your fleet is on the road. Suddenly, you get a call: the A/C is on, but it’s blowing hot air, or worse, no air at all. Often, you’ll find the A/C unit frozen solid.

This is a classic symptom of a misaligned or failed RV air conditioner freeze sensor. This tiny component plays a crucial role in ensuring safe system operation. If you’re a technician or wholesaler, knowing the correct location of the RV air conditioner freeze sensor is essential. It helps you troubleshoot rv ac faster, reduce warranty claims, and keep customers happy. This guide details the sensor’s location, how it differs from a thermostat, and the proper replacement method.

Why the RV A/C Freeze Sensor is Critical for System Performance

Key Points Summary

• Prevents Blockage: Stops ice from forming on the coil and obstructing airflow.
• Protects Hardware: Prevents compressor burnout from overworking.
• Ensures Comfort: Maintains stable temperatures, avoiding sudden warm-ups.

You might wonder why such a small part causes such big problems. The RV air conditioner freeze sensor acts like the entire cooling system’s safety guard. Its job is simple yet vital: monitoring the evaporator coil’s temperature.

While running, the evaporator coil gets very cold to remove heat and moisture from the air. However, if the temperature drops too low (below 0°C or 32°F), moisture on the fins freezes. A correctly placed sensor detects this drop. It signals the compressor to stop while the fan keeps running. Warm air melts the ice, preventing rv ac freezing up.

If the sensor malfunctions or is in the wrong location, the compressor runs continuously. Ice builds up until it completely blocks airflow. This forces the unit to work harder, spiking electricity bills and potentially damaging the compressor. For fleet managers and technicians, a $20 sensor can prevent a $1000+ replacement.

Table Title: The Cost of a Failing Freeze Sensor

What is an RV Air Conditioner Freeze Sensor?

Key Points Summary

• Appearance: A small electronic probe, usually encased in copper or plastic.
• Function: Specifically monitors RV A/C coil temperature sensor data to detect freezing.
• Effect: Cuts power to the compressor if temperatures get too low.

To fix the issue, first identify the faulty part. The RV air conditioner temperature sensor (specifically the freeze sensor) is a simple resistive device. Its resistance changes with temperature. It connects directly to the unit’s control board.

Think of it as a “fail-safe” switch. The wall thermostat measures room air temperature for your comfort, while the freeze sensor measures the temperature of the metal fins inside the unit for machine safety. When it detects fin temperatures near 0°C (32°F), it sends a signal to the control board. The board then shuts off the compressor, letting the fan blow warm air over the fins to melt any potential ice.

Freeze Sensor vs. Thermistor – Are They the Same?

Key Points Summary

• Common Misconception: Many manuals use these terms interchangeably, but their locations differ.
• Key Difference: The freeze sensor contacts the coil; the room thermistor measures incoming air.
• Tip: Always trace the wire to see where the sensor tip ends up.

Many technicians and DIYers get confused here. You might see “thermistor” in parts catalogs. Technically, a freeze sensor is a type of thermistor. But when looking for the RV A/C thermistor location, you need to know which one.

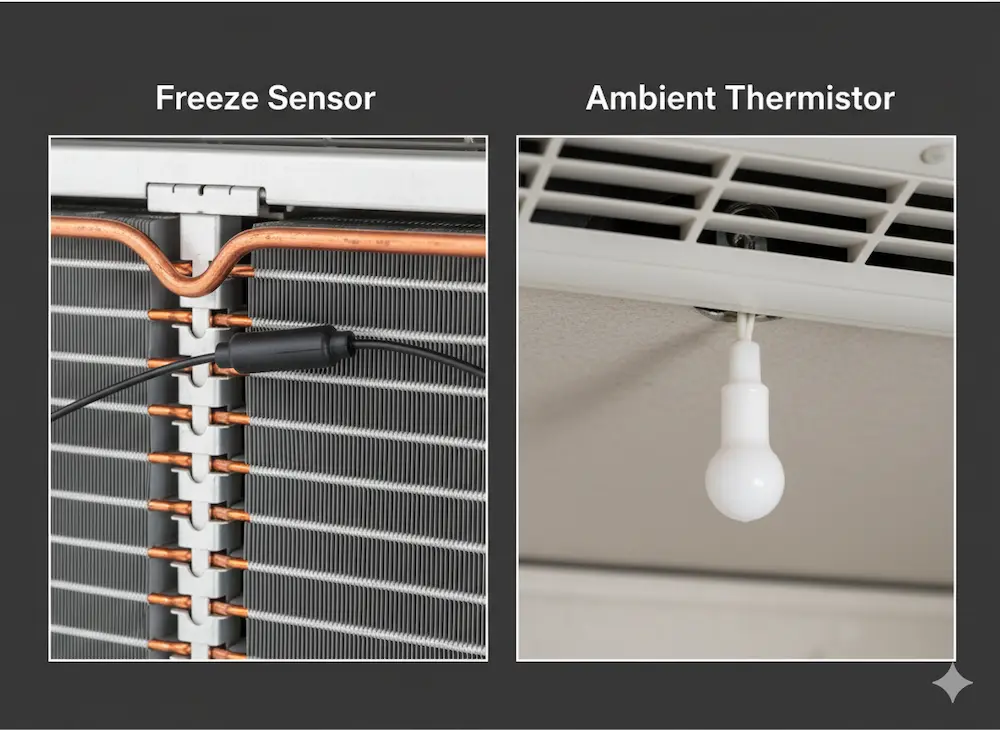

1. Ambient/Room Thermistor: Usually located in the “return air” vent or on a wall. It tells the A/C when to turn on to cool the room.
2. Freeze Sensor: Located inside the evaporator coil fins. It tells the A/C when to stop to prevent damage.

If you order a “thermistor” without checking the part number, you might get a cable that’s the wrong length or has unsuitable resistance. Always confirm if the part is for “freeze protection” or “ambient air temperature sensing.”

Table Title: Freeze Sensor vs. Room Thermistor

Common Causes of RV Air Conditioner Freezing

Key Points Summary

• #1 Culprit: Poor airflow from dirty filters or blocked vents is the most common cause.
• Sensor Factor: If the sensor falls out or breaks, it can’t tell the compressor to stop.
• Humidity: High humidity causes faster coil freezing if airflow is poor.

Before replacing parts, you must understand the root cause of freezing. RV A/C freezing is often a symptom of a bigger problem, not just bad luck. It typically has two main causes: either air isn’t moving fast enough, or the system can’t detect it’s too cold.

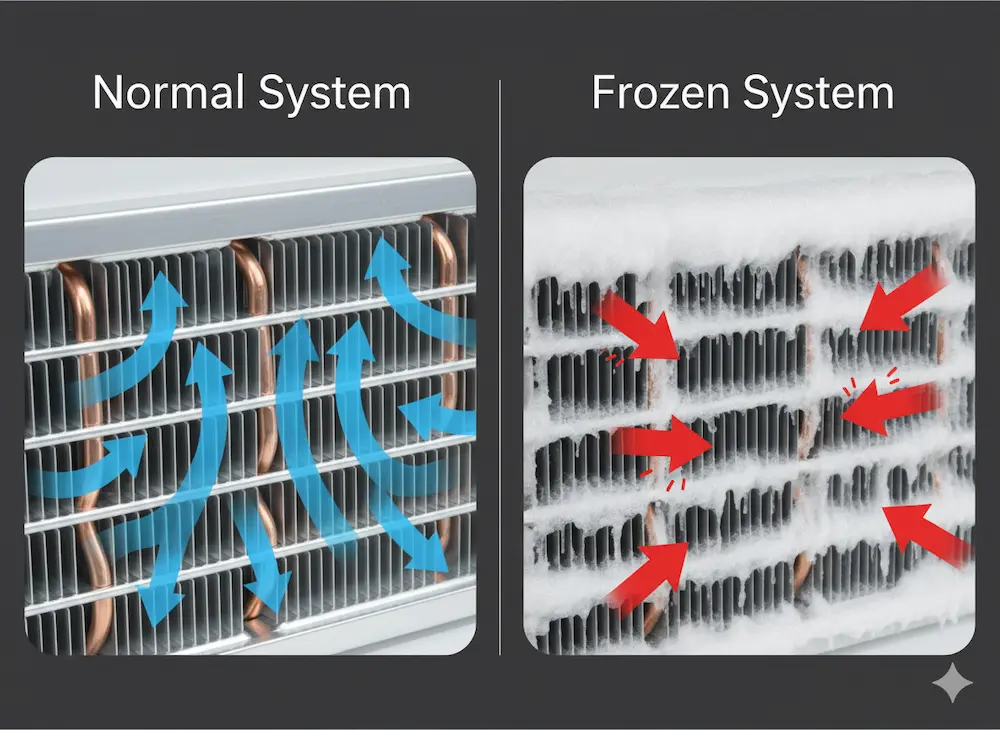

Airflow Restriction

Airflow is the A/C’s lifeline. Warm air flowing over the evaporator coil keeps the metal above freezing. If airflow slows, coil temperature drops rapidly, causing RV A/C evaporator coil freezing.

For technicians, the first check is the filter. A dirty, clogged intake filter chokes the system. Other common issues include:

• Blocked Vents: Users often close ceiling vents to direct air elsewhere, but closing too many increases back pressure.
• Collapsed Ducts: In ducted systems, flexible foil ducts can collapse or kink, blocking airflow.
• Dirty Coil: Dust and pet hair build up directly on the metal fins, acting like a blanket that traps cold.

Sensor Placement or Sensor Failure

Even with perfect airflow, problems can arise if the monitoring system fails. This is where the RV A/C freeze sensor location is critical.

The sensor must be firmly inserted into the coil fins. However, road vibrations can loosen it. If it falls out, it dangles in the warm air inside the housing. It “thinks” the A/C is still warm, telling the compressor to keep running. The coil gradually gets colder until it freezes. Also, if the internal resistor fails, it may send incorrect data to the control board, disabling the automatic shut-off safety feature.

Table Title: Troubleshooting the Root Cause

RV Air Conditioner Freeze Sensor Location (Main Section)

Key Points Summary

• General Rule: The sensor is almost always physically inserted into the evaporator coil fins.
• Roof Access: For most ducted A/C units, you must go on the roof and remove the shroud.
• Internal Access: Ductless units often allow access from the ceiling assembly inside the RV.

Finding the exact location of the RV A/C freeze sensor is like a treasure hunt if you don’t know where to look. While housing designs vary by brand, the sensor itself is always in the “cold zone.” It needs contact with the coldest part of the system to work effectively.

Freeze Sensor Location for RV Rooftop A/C Units

The vast majority of RV A/Cs are on the roof. To find the sensor, you typically need to get on the roof. After removing the plastic shroud, you’ll see two main sections: the condenser (back) and the evaporator (front).

The sensor is inside the evaporator housing. This is usually an insulated foam or metal plate box at the front of the unit. You may need to unscrew a metal plate to see inside. The sensor is embedded directly into the aluminum fins of the evaporator coil, often in the bottom third of the coil.

Inside the Evaporator Housing – What to Look For

Once inside the evaporator box, look for two wires coming from the control board. They connect to a small probe.

• Appearance: It usually looks like a small copper cylinder or a drop of black plastic.
• Mounting: Often held by a white plastic clip, sometimes just wedged between metal fins.
• Wiring: Follow the wires. One end plugs into the “Freeze” or “P2” port on the circuit board; the other end is the sensor itself.

Ducted vs. Ductless RV A/C Systems

The type of air distribution system affects your access.

• Ductless (Ceiling Dump): These A/Cs blow cold air directly from the ceiling assembly.
  • Good news: You might not need a ladder. Often, you can remove the filter cover inside the ceiling and look up. You might see the sensor inserted into the fins from below.
• Ducted Systems: These use hidden vents to distribute air through the ceiling. The evaporator is more sealed to build pressure. For these, the RV A/C freeze sensor location is almost always accessed from the roof. You must disassemble the rooftop housing to reach it.

Table Title: Accessing the Sensor by System Type

Freeze Sensor Location by RV A/C Brand

Key Points Summary

• Dometic: Look for a white plastic clip attached to a copper coil tube.
• Coleman-Mach: Look for a copper probe wedged between aluminum fins.
• Furrion/GE: Usually follow Coleman’s approach, placing the probe in fins near the bottom.

While the principle is the same, each manufacturer builds their A/C unit differently. Knowing the specific freeze sensor location for your RV A/C brand saves time. You won’t waste ten minutes looking for a clip that doesn’t exist on your specific model.

Coleman-Mach / Airxcel Units

If you’re working on a Coleman-Mach unit, you’re likely looking for a simple probe.

• Sensor: Usually a small copper cylinder at the end of a black wire.
• Mounting: Typically inserted directly into the evaporator coil fins.
• Best Spot: Check the bottom 4-5 inches (10-13 cm) of the evaporator coil, often on the left side (when facing the unit from the roof). It acts as a wedge. If fins are bent or damaged, the sensor may not sit snugly, causing inaccurate readings.

Dometic Units

Dometic does it slightly differently. Instead of jamming the sensor directly into the fins, they often use dedicated mounting hardware.

• Sensor: Often encased in plastic or mounted on a clip.
• Location: Look for a white plastic clip that snaps onto a copper tube of the evaporator coil or onto the fins themselves.
• Pro Tip: This plastic clip can become brittle and break with age. If it breaks, the sensor becomes loose, immediately causing a “freeze-up” problem.

Furrion & GE Units

Newer brands like Furrion and GE tend to follow the standard “fin-probe” design similar to Coleman.

• Location: Inspect the lower third of the evaporator coil.
• Note: These sensors are very position-sensitive. Moving it even an inch up or down can change when the compressor shuts off.

KME Units

KME units (common in global wholesale markets and specific import configurations) often focus on durability and simplicity. Their sensor design typically follows industry standards rather than using proprietary clips like some European models.

• Sensor: Look for a black epoxy-coated tip or small copper cylinder. It’s rarely in a plastic housing.
• The Location: It is almost exclusively a “friction fit” design. You will find it pushed directly into the evaporator fins, usually in the center or slightly lower-left quadrant of the coil face.
• Maintenance Note: Since these probes rely on friction to stay in the fins, they are more prone to vibration displacement on rough roads. If a KME unit freezes up, the first thing to check is if the probe has fallen to the bottom of the housing.

Table Title: Quick Brand Reference Guide

How to Access and Inspect the RV A/C Freeze Sensor

Key Points Summary

• Safety First: Always disconnect 120V shore power and 12V battery power before opening the unit.
• Access Path: Most inspections require removing the rooftop shroud; internal access is rare for ducted systems.
• Inspection: You’re checking for physical wire damage or a sensor fallen out of the coil.

Once you know where it is, you need to know how to get there without hurting yourself or the machine. Checking the RV A/C freeze sensor location isn’t hard, but it involves electricity and working at height.

Safety Precautions Before Inspection

Before you climb the ladder, you must “kill” the power.

1. Disconnect Shore Power: Unplug the RV from the power pedestal.
2. Disconnect Battery: Turn off the battery breaker. While A/C power uses 120V to run the compressor, the control board (and sensor) typically uses 12V DC.
3. Capacitor Safety Note: A/C units contain capacitors that store an electrical charge. After unplugging, wait at least 15 minutes before touching internal components, or use an insulated screwdriver.

Quick Diagnostic Checklist

Before you order a pallet of replacement sensors for your fleet, run through this 5-minute check:

1. Visual Check: Remove the shroud and evaporator cover. Is the sensor loose and dangling?
   • Yes? Push it back into the coil fins. Problem might be solved.
2. Ice Check: Is the coil currently iced over?
   • Yes? It must be completely thawed (hair dryer or natural thaw) before testing.
3. Wire Check: Trace the wires back to the circuit board. Are there pinch marks or exposed copper?
   • Yes? The sensor is shorted. Replace it.
4. Resistance Check: (For advanced technicians) Unplug the sensor from the board. Use a multimeter to measure its resistance (Ohms).
   • Result: If you get an “Open Line” (infinite) or “Short” (zero) reading at room temperature, the sensor is bad.

Table Title: Ohms Resistance Chart (Typical Values)

Signs of a Faulty RV A/C Freeze Sensor

Key Points Summary

• Ice Block: Visible ice inside the rooftop unit or vents is the clearest sign.
• “Short Cycling”: The rv air conditioner cycles on and off rapidly because the sensor gives false cold readings.
• Warm Air: The fan blows, but the rv ac not blowing cold air because the compressor is frozen.

You don’t always have to climb on the roof to know something’s wrong. The A/C often tells you it’s sick by how it acts. If you’re a wholesaler handling customer complaints, listening carefully to the description of the failure often points directly to the sensor.

1. Reduced Airflow and Visible Ice

This is the classic failure. You turn on the A/C, and it works fine for the first hour. Then, airflow gets weaker and weaker. Eventually, it stops blowing altogether, even though the fan is roaring.

• What’s happening? The sensor failed to signal the compressor to stop. The coil froze into a solid block of ice, completely blocking airflow.

2. Short Cycling (“False Alarm”)

Sometimes a sensor fails by being “too sensitive” (resistance drift). It signals the control board that the coil is freezing when it’s actually 75°F (24°C).

• Symptom: The compressor runs for 2 minutes, stops, then starts again. The RV never cools down.

3. Constant Running (“Ignored Signal”)

If the sensor falls out of the coil (a common RV A/C freeze sensor location issue), it dangles in warm air. It constantly tells the control board “I feel warm! Keep cooling!” leading to severe freezing and potential compressor valve damage.

Table Title: Decoding AC Behavior

Replacing an RV A/C Freeze Sensor – What You Need to Know

Key Points Summary

• Don’t Mix Brands: Sensors are often not cross-compatible between different unit brands due to resistance differences.
• Placement is Critical: Pushing the new sensor into the exact same spot is crucial for accuracy.
• Never Bypass: Running the compressor without a sensor can destroy it.

Once you confirm the sensor is bad, replacement is straightforward – provided you buy the correct part. For our wholesale partners, stocking the right RV A/C freeze sensor is crucial because they are not always universal.

Compatibility and Wiring Considerations

A/C manufacturers use different “languages” to communicate with their control boards.

• Resistance Values: A Brand X sensor might read 10k Ohms at room temp, while Brand Y reads differently. Installing the wrong one can make the A/C think it’s freezing when it’s hot outside.
• Connector: Check the plug. Some use white 2-pin Molex plugs; others use flat black connectors. Always match the plug style to avoid cutting and splicing wires, which risks corrosion.

Can an RV A/C Run Without a Freeze Sensor?

This is the most common question from frustrated campers. The short answer is no.

Never simply unplug the sensor and bypass it.

• If Unplugged: Most modern control boards detect an “open circuit” error and refuse to run the compressor at all.
• If Bypassed (wired closed): The compressor would run blindly, eventually freezing the evaporator coil. Worse, liquid refrigerant could flood back into the compressor (“liquid slugging”), damaging valves. A $20 repair turns into a $1200 replacement.

Table Title: OEM vs. Universal Replacement Risks

Wholesale and Fleet Maintenance Considerations

Key Points Summary

• Inventory Strategy: Keep a stock of sensors for the brands you service most.
• Preventive Check: Check sensor placement during every spring start-up maintenance.
• Bulk Savings: Proactively replacing sensors is cheaper than replacing frozen compressors.

For our global wholesale partners and fleet operators, the RV A/C freeze sensor is a small part with a massive impact. A 50-unit rental fleet can face mass downtime if even a few units freeze up during peak season.

Proactive Maintenance Protocol

Don’t wait for a freeze-up. Train your maintenance team to check the RV A/C freeze sensor location during routine filter cleaning.

1. “Tug” Test: Gently pull on the wire. If the sensor slides easily out of the coil, it needs to be re-seated or secured with high-temp HVAC tape or a new clip.
2. Visual Check: Look for corrosion on the connector pins. In coastal or humid climates, these age faster, causing resistance errors.
3. Inventory Management: Unlike universal capacitors, freeze sensors are brand-specific. Ensure your parts bin contains the correct resistance values for the specific brands in your fleet.

Table Title: Maintenance Schedule for Fleet Managers

FAQ About RV Air Conditioner Freeze Sensors

How do I test an RV A/C freeze sensor?

You need a multimeter. Unplug the sensor from the control board. Set the multimeter to Ohms (Ω). Touch the probes to the sensor pins. At room temp (25°C/77°F), a standard sensor should read around 10k Ohms (check your brand’s manual). If you get “OL” (open line) or 0 (short), the sensor is bad.

How do I replace an RV A/C freeze sensor?

1. Turn off all power.
2. Remove the rooftop shroud and evaporator cover.
3. Unplug the old sensor from the circuit board.
4. Pull the sensor probe out of the coil fins.
5. Insert the new probe into the exact same spot.
6. Plug it in and test.

What does the freeze sensor do on an RV air conditioner?

It monitors the evaporator coil temperature. If the coil gets near freezing (32°F/0°C), the sensor tells the system to shut off the compressor but keep the fan running. This melts ice and prevents damage.

How do I know if my RV A/C freeze sensor is bad?

Common signs include the A/C unit freezing into a block of ice, the compressor turning on and off every few minutes (short cycling), or the A/C refusing to start the compressor even when it’s hot outside.

How do I reset an RV A/C freeze sensor?

The sensor itself cannot be “reset”; it’s just a simple resistor. However, you can reset the control board by disconnecting 12V power (pull the fuse or disconnect the battery) for 5 minutes. This clears any error codes caused by the sensor.

Can an RV air conditioner work without a freeze sensor?

Theoretically, some machines might run if bypassed, but it’s dangerous. Without it, the unit will likely freeze solid, cause liquid slugging, and eventually destroy the compressor.

What should the resistance reading be for an RV A/C freeze sensor?

• Typically around 10k Ohms at 77°F (25°C).
• Note: Resistance usually increases as temperature decreases (NTC thermistor).

Conclusion – The Key to Preventing RV A/C Freeze-Ups is Sensor Placement

An A/C freeze-up can ruin a family vacation or a rental contract. Yet, the fix is often a part smaller than a pencil.

Whether you’re troubleshooting a single unit or stocking parts for a global wholesale network, understanding the correct RV A/C freeze sensor location is your first line of defense. Remember:

1. Check Airflow First: Cleaning the filter often solves the problem.
2. Verify Placement: Ensure the sensor is tightly wedged into the coil fins.
3. Match the Part: Use the correct sensor that matches your specific brand.
