Ultra Light Bottom Mount Wall Split RV AC Unit
Enjoy a cool summer in the comfort of your RV!
LEARN MORE!Intro
Let’s play together.
No worries about heat and cold, best way to keep camper cool in summer, mute and power-saving king, quietly enjoy the wonderful starry sky.
Ultra-thin outdoor unit
Wall mount rv ac unit outdoor unit only 179 mm thick, compatible with a wider range of vehicle models
Extreme high temperature environment
Refrigerant circuit technology that can adapt to extreme high temperatures of up to 55°C.
Flexible heating and cooling
This is a rv ac unit with heater that allows you to switch flexibly between heating and cooling.
About
Break through
The ultra-thin underbody-mounted outdoor unit achieves a power consumption ac unit of 2700W, operates quietly at a noise level of less than 40dB, and features intelligent energy efficiency optimization. It maximizes weight reduction and saves more driving energy, making it an excellent choice for van trucks, campers, and compact RV owners who have high requirements for space, noise levels, and harsh road conditions.
Our story

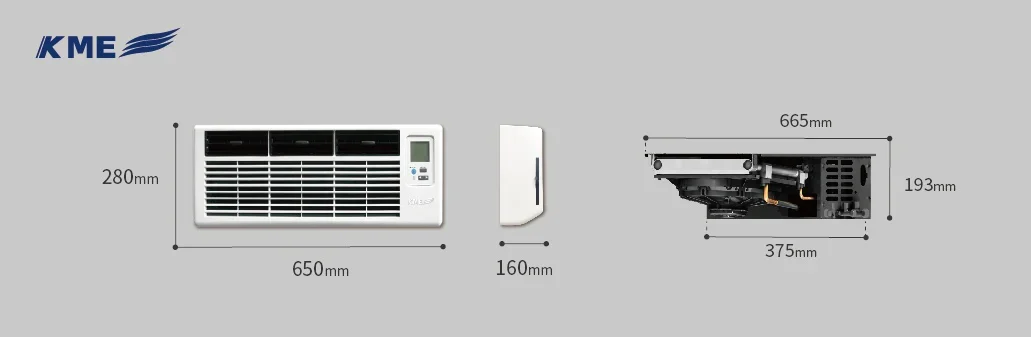

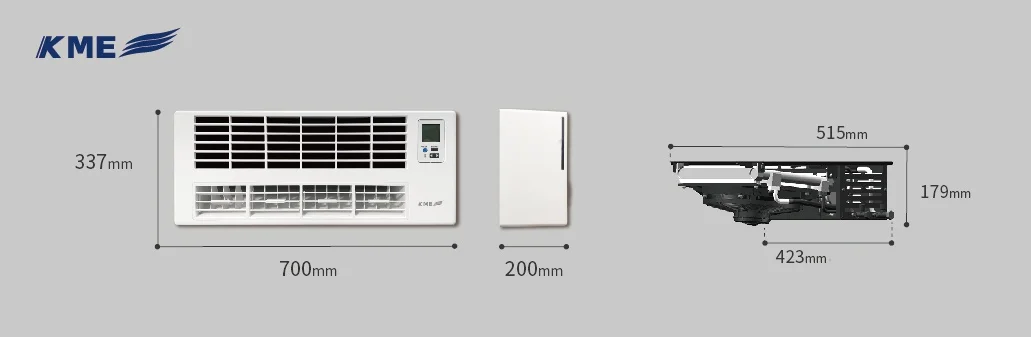

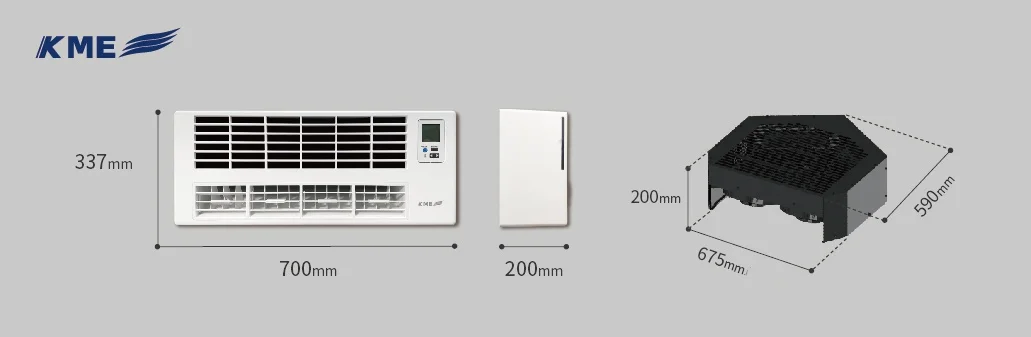

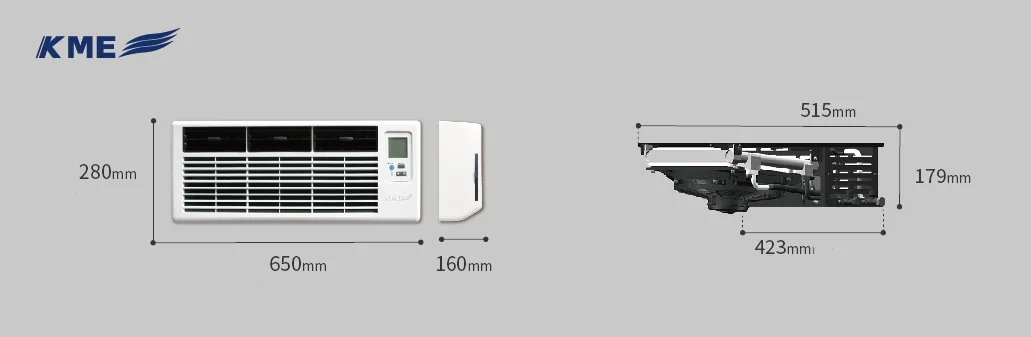

Product specification
Get comprehensive data on this Split Ac Unit for Rv ➔
| Model: | K12UX-320W | K48UX-324W |
| Rated input voltage: | 12V DC | 48V DC |
| Rated input current: | 72A | 18.5A |
| Rated input power: | 864W | 888W |
| Rated cooling capacity: | 6900 BTU | 8200 BTU |
| Temp Range: | 17-30°C | 17-30°C |
| Refrigerant type: | R134a | R134a |
| Weight of outdoor unit: | 12.5kg | 12.5kg |
| Weight of indoor unit: | 7.0kg | 7.0kg |
| Rated input voltage: | 12V DC |
| Rated input current: | 65A |
| Rated input power: | 780W |
| Rated cooling capacity: | 6900 BTU |
| Temp Range: | 17-30°C |
| Refrigerant type: | R134a |
| Weight of outdoor unit: | 12.5kg |
| Weight of indoor unit: | 6.0kg |
| Rated input voltage: | 12V DC |
| Rated input current: | 75A |
| Rated input power: | 900W |
| Rated cooling capacity: | 7200BTU |
| Temp Range: | 17°C-30°C |
| Refrigerant type: | R134a |
| Weight of outdoor unit: | 18.5kg |
| Weight of indoor unit: | 6.0kg |
| Model: | M48UX-324W | M12UX-320W |
| Rated input voltage: | 48V DC | 12V DC |
| Rated input current: | 18.5A | 60.8A |
| Rated input power: | 888W | 730W |
| Rated cooling capacity: | 8200 BTU | 6900 BTU |
| Temp range: | 16-31°C | 16-31°C |
| Refrigerant type: | R134a | R134a |
| Weight of outdoor unit: | 12.5kg | 12.5kg |
| Weight of indoor unit: | 7.0kg | 7.0kg |
| Model: | K12UX-727TP | K48UX-727TP |
| Rated input voltage: | 12V DC | 48V DC |
| Rated input current: | 92A | 23A |
| Rated input power: | 1104W | 1104W |
| Rated cooling capacity: | 9300BTU | 9300BTU |
| Temp Range: | 17-30°C | 17-30°C |
| Refrigerant type: | R407C | R407C |
| Weight of outdoor unit: | 28.2kg | 28.2kg |
| Weight of indoor unit: | 7.0kg | 7.0kg |
| Indoor unit can be selected: |  | |
Are you still struggling with your car’s air conditioning system?
We specialize in all kinds of rv ac unit, including camper ac unit, trailer ac unit, van ac unit, truck ac unit, boat ac unit, cold chain transport ac unit, medical services ac unit, and other types of ac unit for vehicle and ship, no matter where you go on your adventure, no matter what season, we can bring comfort to your hot summer days, bring warmth to your cold winter days, and eliminate the worries of your journey, energy-saving, comfortable, beautiful, economical, and tailor-made durable, high-quality, and reliable air conditioning system for your car.
Gold Medal Service
Focusing on user experience, insisting on the same quality.
Environmental Protection
Taking energy saving and emission reduction as our responsibility, caring for driver’s health.
Unique Technology
Years of experience, unique and leading technology.
Safety certification
Multiple patented technologies, EU safety certification.
Strict quality management
Exquisite manufacturing and testing equipment, world-class quality management system.
Best-selling in the world
Highly adaptable products, exported to the world, widely acclaimed.
Look at the products.
View allTestimonials
What our happy clients say
4.8 stars from 163 reviews
Simply can be called the king of the RV air conditioning field, easy to install, top notch cooling and heating, installed according to the instructions, clear and concise, everything works perfectly as planned, beyond expectations.
Cameron Hayes
Perfectly installed in my RV, beautiful styling, works great, great unit, easy to install and service, I’m going to buy two more.
Aspen Reed
The summer is exceptionally hot, and it would be wonderful to find the right RV air conditioner even while traveling, not only did we feel the ease of installation, but we also experienced the amazing ability to regulate hot and cold temperatures.
Ridge Dawson
Frequently asked questions
What are the power requirements for an RV air conditioning system?
Unlike home air-conditioning, RV air-conditioning systems have unique power supply requirements, such as adequate power kilowatts, voltage, and current, controllable power management, intelligent energy-saving control functions, additional power support equipment, regular maintenance and monitoring mechanisms, and a safe grounding safeguard, all of which must be strictly followed and carefully verified for the sake of travel freedom and comfort.
Can a regular home air conditioner replace an RV air conditioner?
RV air conditioners are designed for mobile travel or living in RVs, whereas ordinary home air conditioners are designed for people living at home. Although both add refrigerant to ac temperature control products, the application scenarios are different, as are the product characteristics, and they cannot be used interchangeably. Specific differences include installation location, seismic rating, adaptability of power supply, product design, volume size, temperature weathering, energy efficiency, environmental standards, ventilation and drainage systems, temperature control, comfort, maintenance and after-sales service, price, and cost-effectiveness. Overall, caravan air conditioners are designed to offer comfort and safety during travel. When paired with the caravan’s characteristics, choosing an air conditioner and have a fantastic journey.
What are the advantages of inverter air conditioning for RVs over traditional air conditioning?
With the continuous innovation of inverter technology and other air conditioning technologies, the ac features are becoming more and more obvious. Compared to traditional air conditioning, the advantages include intelligent regulation of the compressor operating frequency, saving power consumption, and accurate maintenance of the temperature stability of the small space, technological innovation without the need for frequent switching of the compressor. Uniform and comfortable, with a remote control and intelligent connection that is adaptable and modern, as well as cost-effective.
What are the main types of RV air conditioners?
Caravan air conditioners are classified into three types: roof-mounted integrated, split wall-mounted, and split bottom-mounted models. Choosing to install an rv ac roof unit, it is ideal for caravans with unrestricted roof space, high-silence requirements, good cooling effect, high airflow demand, and external power supply. Split wall-mounted and split bottom-mounted air conditioners, in which the outdoor unit is positioned at the back or bottom of the caravan and the inside unit is installed on the caravan’s wall, are ideal for caravans with limited roof space and no external power supply.
